Battery, Recharging & Range
Equipped with a 73.6 kWh battery, CCS Type 2 charging and a 22kw capacity AC onboard charger. The EC11 promises to offer the most flexible recharging options to operators. A range of between 200- 300km (based on load) offers sufficient route coverage for daily use.
Features
The EC11 vehicle is designed for effortless loading and unloading. It features a passenger-side sliding door and dual folding doors at the rear that can open up to 270 degrees, along with a rear step.

Dual Rear Doors opening to 270 Degrees and rear step allow for easy access when loading and unloading.

Standard 16” Alloy wheels with Full-Size Alloy spare wheel allowing for Tyre rotation if desired.

The multi-function instrument cluster provides clearly structured, easy to read data.

Height adjustable seat belts, Multi position drivers arm rest, cloth seats, Tilt adjustable steering wheel all make for a comfortable driving experience.

Stereo controls on the Steering wheel.

Combined reversing camera and live streaming vision to the rear vision mirror.

5 x cup and bottle holders. Plus multiple built in storage compartments.

Adjustable arm rests for both driver and passenger seats.
Dimensions



Optional Anchor Points

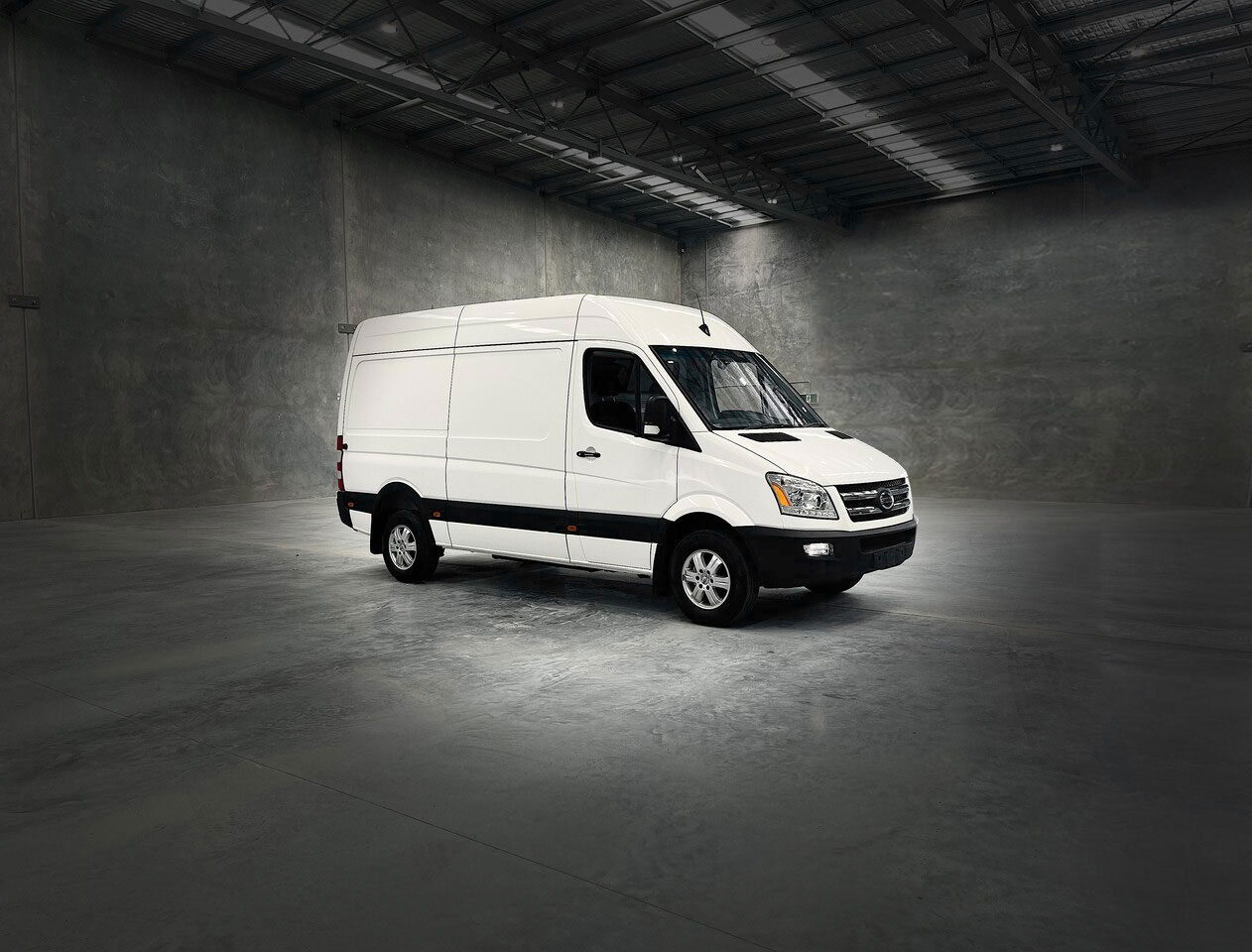

EC11 E-Cargo Specifications
Dimensions (mm) | 6030L x 2410W x 2715H |
---|---|
Wheelbase (mm) | 3665 |
Seating Capacity | 2 Seat STD or 3 Seat Option |
Curb weight | 2790 kg |
Gross Vehicle Mass | 4490kg |
Max speed | 120 km/h |
Rated payload | 1700kg |
Front/Rear overhang | 640/1010mm |
Approach/departure angles | 21/17 degrees |
Axle load | Front - 2230 | Rear - 2260 kg |
Wheel track | 1720/1716 mm |
Tyres | 215/75R16C 12RP |
Alloy wheels | x 5 ( including Full-size Spare wheel) |
Chassis structure | Unibody |
Battery type | Lithium-ion battery, Liquid Cooled |
Battery capacity | 73.6KWH |
Charging time | 2.0 hour (Fast Charge) 12-13h AC Slow |
Charging socket | CCS Type 2 |
AC On-Board Charger | 22kW |
Range(KM) | 300km (NEDC)** |
Usable Range under load | ** The EC11 is designed to transport both people and cargo, so its overall range will vary depending on the amount of load it's carrying. The expected laden range is over 200 km. Factors such as driving conditions (metropolitan, rural, or highway), speed, terrain, driving style, and ambient conditions will also affect its overall range. |
Rated Peak Power (kW) | 60/100 |
Rated Peak Torque (N.m) | 350/750 |
Driving mode | Front - Mounted , Rear - Drive |
Transmission | Reduction Gears |
Steering system | Electric Hydraulic power assisted |
Brake system | Front disc/rear drum, ABS+EBD, Initiative vacuum booster |
Front suspension | Horizontal Spring Loaded Independent suspension |
Rear suspension | Vertical 3 Plate Reed non-independent suspension |
Safety | ABS,EBD, Dual Airbags, Live Stream Rear Vision mirror, front and rear dash cameras |
---|---|
Interior | Sun Visors, Cup and bottle holders, Steel Sealed Bulkhead, Checker plate cargo floor |
Exterior/Anti-theft | Sliding Side Door, 270° Opening Rear Cargo Door Remote control central locking |
Seats | Fabric seats |
Multimedia | Radio with USB |
Glass/Rear-view Mirror | Front door electric power windows. Electric rear view mirrors with indicators |
Assistant Equipment | Parking Aids- Reverse Sensors, Reverse Cameras x 2, convex side mirrors |
A/C | Cooling system, PTC heating system, Defroster |
Tools | Vehicle Kit, Jack |
Drive Motor | Permanent Magnet Sychronous Motor |
---|---|
Rated Peak Power (kW) | 60 / 100 |
Rated Peak Torque (N.m) | 350 / 750 |
Rated Power Rotational Speed (rpm) | 1640 / 4200 |
Rear Axle Ratio | 4.875 |
Max Gradeability (%) | 20% |
Acceration 0-60km/h | 10 Seconds |
Battery Type | Lithium-Ion |
Battery Cooling method | Liquid Cooled |
Single Cell Type | LF230 |
Regenerative Braking System | Yes |
On Board Charger (OBC) | 22kw |
Charging System | CCS Type 2 |
Rated Voltage of the battery (V) | 320 |
Working Voltage Range (V) | 250 - 365 |
Battery Capacity (Ah) | 230 |
Total Capacity (kWh) | 73.6 |
Weight Of Battery (kg) | 618 +/-18 |
AC Slow Charging (32A) | 4 - 5h |
DC Fast Charging (60kW) | 2h |
