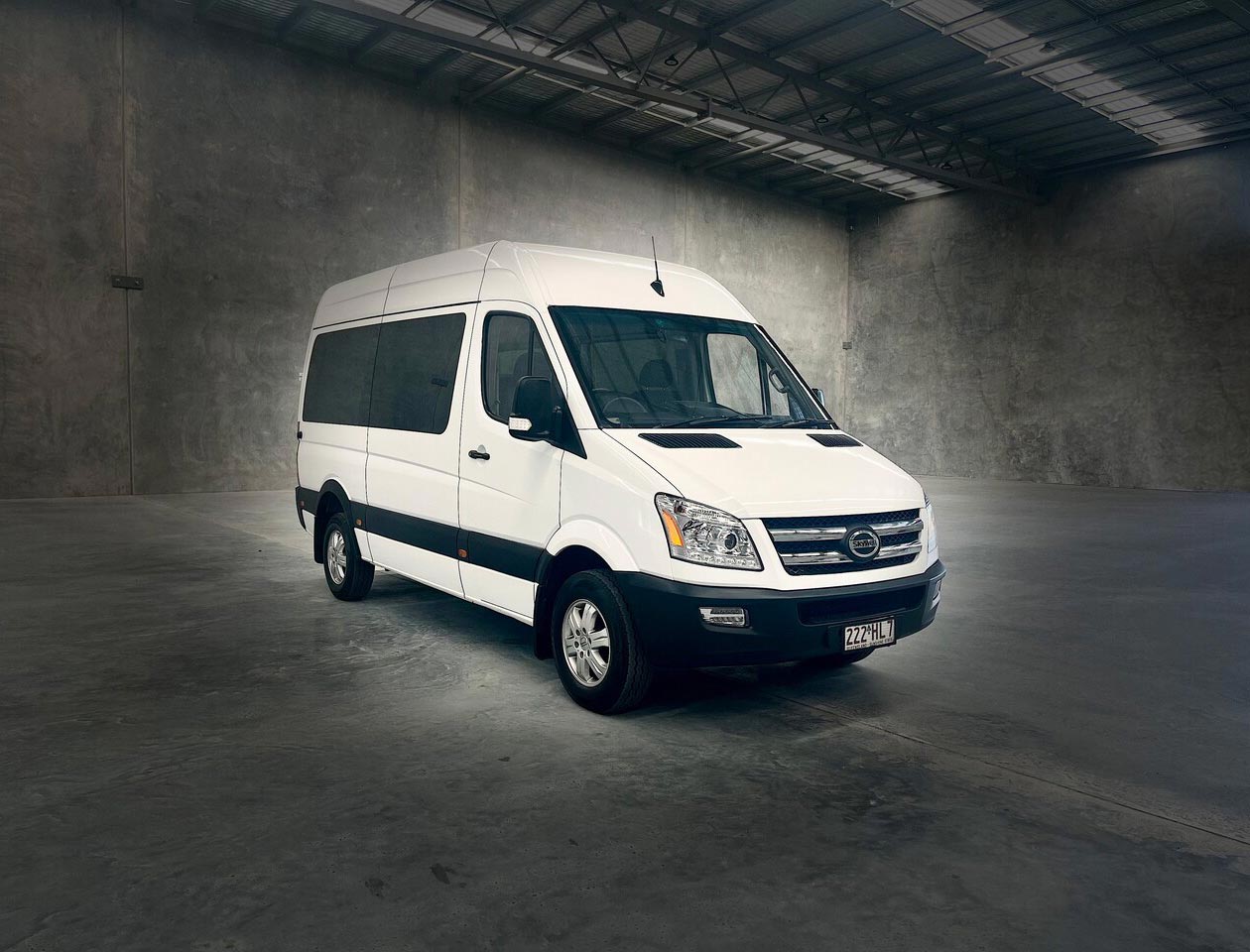

E-Crew
The E-CREW minibus is an excellent choice for operators seeking an affordable, eco-friendly vehicle, transportation solution within a specific radius. With a seating capacity of up to 12 people, including the driver, this electric minibus is ideal for small groups. The vehicle comes with ducted air conditioning to ensure that passengers are comfortable, even in hot weather. In addition, operators have the option to customize the minibus's interior trim to their liking. All in all, the E-CREW minibus is an exceptional option for those who want to offer their passengers a comfortable, stylish, and environmentally conscious ride.
A van for every day
The customer experience is still characterized by flexibility, delivery speed, and efficiency. The EC11 model range now offers the convenience of the E-CREW to carry out these operations. The 12-seat E-CREW Electric Minibus is an excellent choice for the job. A 100% electric Minibus, they are eco-friendly and provide significant cost-saving advantages while delivering quick, efficient, and consistent operation for their owners.
Battery
Equipped with a 73.6 kWh battery, CCS Type 2 charging and a 22kw capacity AC onboard charger. The EC11 promises to offer the most flexible recharging options to operators. The expected range is over 200km. Driving in metropolitan, rural or highway conditions, speed, terrain, driving style, and ambient conditions will also affect its overall range.
Driving the future of commercial vans
In today's customer-centric world, businesses are striving to provide convenience, fast delivery, and efficiency. To achieve this, they are exploring the use of Electric Vehicles and Electric Vans for last-mile operations. The E-CREW is a perfect fit for this purpose, as it is eco-friendly, dependable, and provides substantial cost savings for operators.
Is it ideal for your business?
The customer experience is still characterised by flexibility, delivery speed, and efficiency. The EC11 model range now offers the convenience of the E-CREW to carry out these operations. The 12-seat E-CREW is an excellent choice for the job. A 100% electric vehicle, they are eco-friendly and provide significant cost-saving advantages while delivering quick, efficient, and consistent operation for their owners.
Built To Order In Australia
The E-CREW is built to order right here in Australia, using locally sourced materials and expertise provided by local suppliers. By opting for a built-to-order model, we can ensure a fit-for-purpose product while supporting not only the customer but also local businesses. And the best part? customise your electric vehicle by choose from a variety of seat styles, trim options, and minor layout adjustments, with no additional costs.
With a 12-seat capacity, the E-CREW provides a viable 100% electric van solution to operators looking for a cost-efficient solution to transport passengers within a defined radius. The EC11 E-CREW offers a comfortable and stylish ride, complete with ducted air conditioning and a variety of interior trim options.

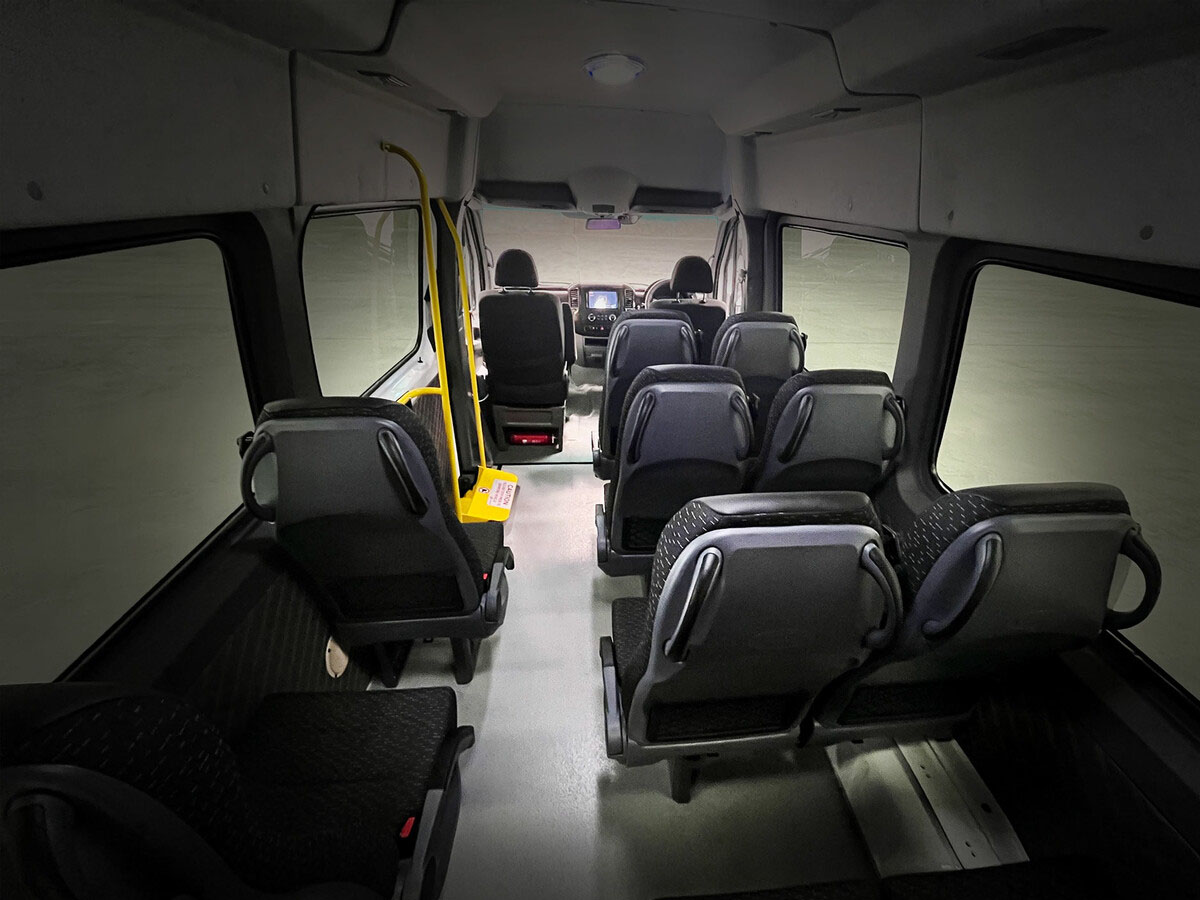

SEAT Options
1.
Double Cloth Coach Style
2.
Single Cloth Coach Style
3.
Single Vinyl Coach Style
4.
Double Vinyl Folding Access Style
Features
1.
Manual folding step. This step mounts internally into the step well of the vehicle and is paired with fixed handrail systems. These products are designed to improve safety and mobility around entry and exiting vehicles.
2.
Internal Cabin lights, controlled from the driver's position. Providing cabin illumination without distracting the driver.
3.
Dual Rear Doors open to 270 Degrees, for easy access when loading and unloading and in preparation for wheelchair loaders if required.
4.
Anchor points are supplied as standard in specific locations where child seats can be secured. They are designed to keep the child seat firmly in place in the event of an accident or sudden stop.
Dimensions
EC11 E-Crew Specifications
| Dimensions (mm) | 6030L x 2410W x 2715H |
|---|---|
| Wheelbase (mm) | 3665 |
| Seating Capacity | Configurable to 12 persons |
| Curb weight | 2980 kg |
| Gross Vehicle Mass | 4490kg |
| Max speed | 120 km/h |
| Front/Rear overhang | 640/1010mm |
| Axle load | Front - 2230 | Rear - 2260 kg |
| Wheel track | 1720/1716 mm |
| Tyres | 215/75R16C 12RP |
| Chassis structure | Unibody |
| Battery type | Lithium-ion battery, Liquid Cooled |
| Battery capacity | 73.6KWH |
| Charging time | 2.0 hour (Fast Charge) 12-13h AC Slow |
| Range(KM) | 300km (NEDC)** |
| Motor Type | Permanent magnet motor 100kw |
| Driving mode | Front - Mounted , Rear - Drive |
| Transmission | Reduction Gears |
| Steering system | Electric Hydraulic power assisted |
| Brake system | Front disc/rear drum, ABS+EBD, Initiative vacuum booster |
| Front suspension | Horizontal Spring Loaded Independent suspension |
| Rear suspension | Vertical 3 Plate Reed non-independent suspension |
| Electric wing mirror with turn lamp |
|---|
| Rear Fog Lights |
| Day time running lights |
| Chrome plated front grill |
| Reverse sensors |
| Tiltable steering wheel |
| PVC floor |
| White paint |
| Reversing Camera |
| Front heater with defroster |
| Air Conditioning air purifier |
| Anti glare inner rear view mirror |
| Intermittent front wiper |
| Combination lamp |
| Live stream rear vision mirror |
| Speaker(4) |
| Front & Rear dash camera's |
| Vinyl seat |
| Manual Folding step with fixed hand rails |
| Child Anchorage points |
| Alloy wheels |
| Power driver & co driver window |
| UV Blocking front windscreen |
| Remote control central locking |
| 12 Seats |
| MP5 + Reverse camera |
| Rear side dark privacy glass |
| External antenna |
| 1300mm sidedoor opening |
| Front and rear ducted AC |
| Full Size Alloy Spare Wheel |
| Fabric Seat Trim | NO Charge |
|---|---|
| Vinyl Seat trim (not including driver & Front passenger seats) | NO Charge |
| Smartline “Coach” style seats | NO Charge |
| Contra “Access” style seats | NO Charge |
| Folding Seats | POA |
| Wheelchair Configuration including Loader | POA |
| Drive Motor | Permanent Magnet Sychronous Motor |
|---|---|
| Rated Peak Power (kW) | 60 / 100 |
| Rated Peak Torque (N.m) | 350 / 750 |
| Rated Power Rotational Speed (rpm) | 1640 / 4200 |
| Rear Axle Ratio | 4.875 |
| Max Gradeability (%) | 20% |
| Acceration 0-60km/h | 10 Seconds |
| Battery Type | Lithium-ion |
| Battery Cooling method | Liquid Cooled |
| Single Cell Type | LF230 |
| Regenerative Braking System | Yes |
| On Board Charger (OBC) | 22kw |
| Charging System | CCS Type 2 |
| Rated Voltage of the battery (V) | 320 |
| Working Voltage Range (V) | 250 - 365 |
| Battery Capacity (Ah) | 230 |
| Total Capacity (kWh) | 73.6 |
| Weight Of Battery (kg) | 618 +/-18 |
| AC Slow Charging (32A) | 4 - 5h |
| DC Fast Charging (60kW) | 2h |
